Technical data
| KP MINI | |||
| Type number | 52998 | ||
| Tripping torque [Nm] | 30 | 30 | |
| Tripping force [kN] | |||
| Adjusting time [s/90°] | 30-60 | 30-60 | |
| Adjusting speed | [min-1] | ||
| [mm/min] | |||
| Working stroke | [°] | 90 | 90 |
| [ot] | |||
| [mm] | |||
| Supply voltage | 1x 230 V, 50 Hz | ✔ | ✔ |
| 24 V, 50 Hz | |||
| 1 x 110 V, 50 Hz | |||
| 3 x 400 V, 50 Hz | |||
| Control | Two position On-Off | ✔ | ✔ |
| Threeposition | ✔ | ✔ | |
| Continuous | |||
| PROFIBUS | |||
| Position sensing | Resistance transmitter (R) | ✔ | ✔ |
| Current transmitter (I) | |||
| Position interrupt | ✔ | ✔ | |
| Torque-initated interrupt | |||
| Manual actuation | ✔ | ✔ | |
| Explosion-proof design | ✔ | ||
| Type of enclosure | IP 67 | IP 67 | |
| Weight - depending on design (Al/cast iron) and on motor [kg] | 4 | 4 | |
Usage

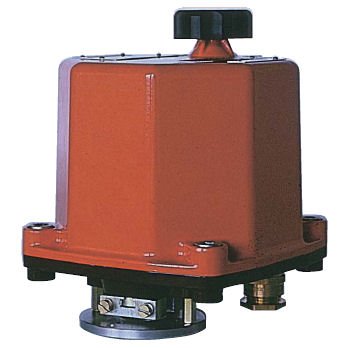

The KP MINI and KP MINI EEx electric part-turn actuators with a constant rotating speed of the output shaft (hereafter referred to as actuators) have been specially designed for actuating valves (ball and flapper valves), louvers, air flaps and other devices for which they are in respect of their characteristics suitable. They can be used in remote and automatic control circuits.
When equipped with an electronic position regulator with position feedback, these actuators can act as a final power control element of control circuits used for controlling physical variables.
